Upgrade Data Catalog to a patch version

This document provides the steps required to upgrade Pentaho Data Catalog (PDC) to a specific patch version. Applying a patch ensures that your environment receives the latest defect fixes, performance improvements, and security updates, while maintaining compatibility with the corresponding GA version.

Each patch release includes two components:

• pdc-<version>-cp.<patch number>-images.tgz: A file containing the Docker images included in the patch release.

• pdc-<version>-cp.<patch number>.patch: A smaller text file with the Docker image tags that need updating.

Prerequisites

Before you begin, ensure:

• You have administrative access to the server where Data Catalog is installed.

• The GA version related to the patch must be installed on your server. For example, if you are installing a PDC 10.2.7 patch, you must first have PDC 10.2.7 GA installed.

• You have a backup of your configuration and data.

• The pdc-<version>-cp.<patch number>-images.tgz and pdc-<version>-cp.<patch number>.patch files must be placed in the Data Catalog server.

• PDC is installed via Docker at /opt/pentaho/pdc-docker-deployment.

Assumptions

It is assumed that Data Catalog has been installed with Docker at the installation path: /opt/pentaho/pdc-docker-deployment

Procedure

Perform the following steps to upgrade Data Catalog to a specific patch version:

1. Go to the Data Catalog installation folder, where Data Catalog is installed.

   cd /opt/pentaho/pdc-docker-deployment/

2. Stop the currently running Data Catalog services.

   ./pdc.sh stop

3. Back up configuration files:

   1. Create a backup folder in /opt to store the container data and configuration backups.

      mkdir /opt/pdc_backup_<pdc_version>

   2. Copy the config folder to the backup folder you have created.

      cp -a /opt/pentaho/pdc-docker-deployment/conf/ /opt/pdc_backup_<pdc_version>

   3. Copy the vendor folder to the backup folder you have created:

      cp -a /opt/pentaho/pdc-docker-deployment/vendor/ /opt/pdc_backup_<pdc_version>

4. Back up Docker volumes:

   1. Identify Data Catalog Docker volumes.

      docker volume ls | grep pdc*

   2. Go to the Docker volumes path.

      cd /var/lib/docker/volumes

   3. Copy Data Catalog Docker volumes to the backup folder:

      cp -a pdc* /opt/pdc_backup_<pdc_version>/

5. Verify that all configuration files and Docker volumes are backed up correctly in the backup folder.

6. Load the new images into the Docker repository.

   docker load -i pdc-<version>-cp.<patch number>-images.tgz

7. Apply the patch using the correct method for your version.

   • For versions prior to 10.2.8: back up .env.default and update it with the new tags from the patch file.

     cp vendor/.env.default vendor/.env.default.bkp

     awk -F= 'NR==FNR {a[$1]=$2; next} $1 in a {$2=a[$1]}1' OFS== \
       <path-to-patch>/pdc-<version>-cp.<patch number>.patch \
       vendor/.env.default.bkp > vendor/.env.default

   • For versions 10.2.8 and later: run the patch helper.

     ./pdc.sh apply-patch pdc-<version>-cp.<patch number>.patch

8. Start PDC services.

   ./pdc.sh up

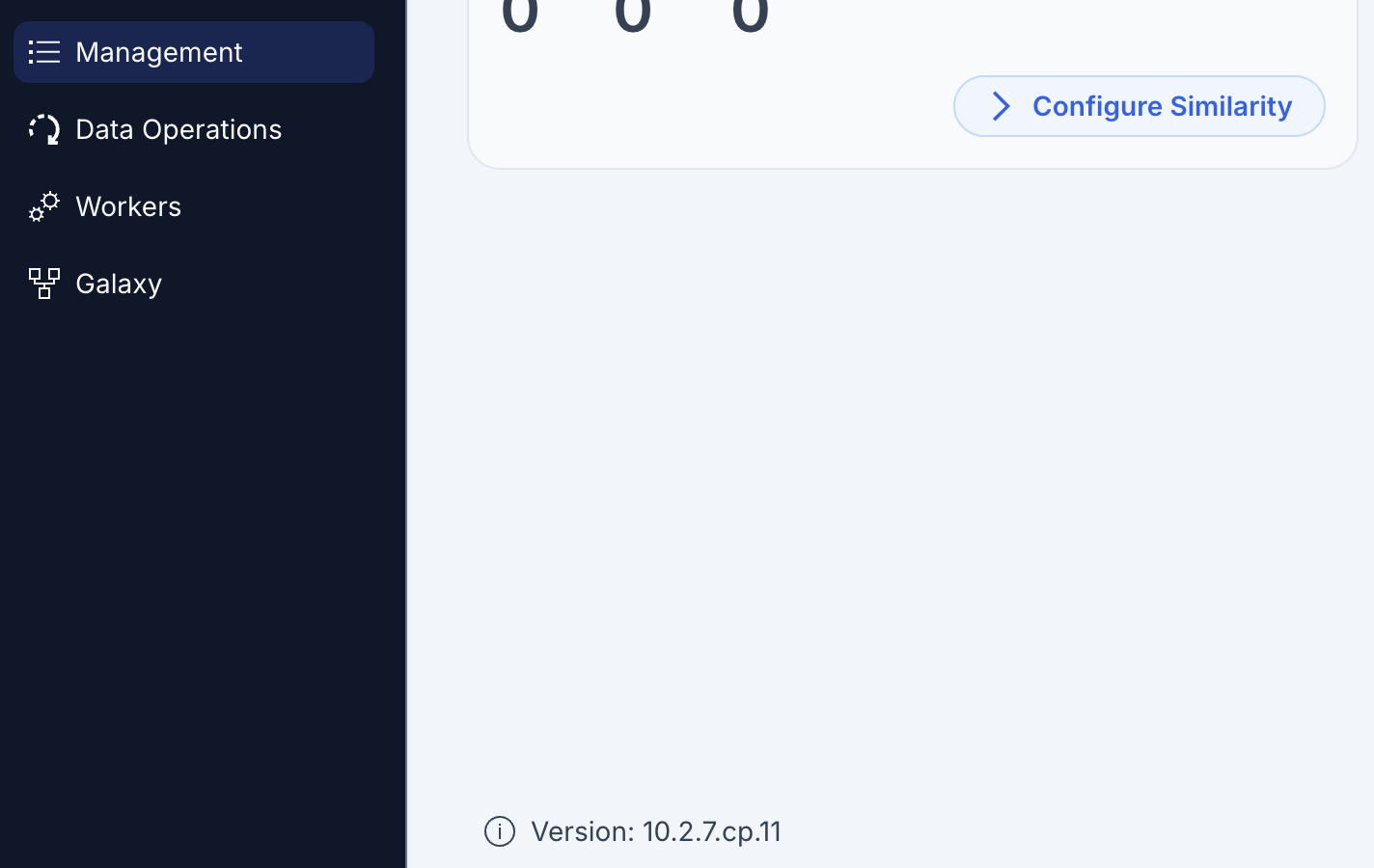

9. Log in to Data Catalog and navigate to the Management section, then confirm that the version has been updated to match the patch version.


10. Repeat steps from 1 to 9 on each server that runs a PDC remote worker.

Result

You have successfully upgraded the Data Catalog patch version.

You can also refer to the Advanced configuration section in the Administer Pentaho Data Catalog guide for additional configurations required.
